Description

Colour: Red

Rated current (A): 16

IP degree: IP44/IP54

No. of poles: 3P+E

Reference: 6H

Mechanical resistance: IK09

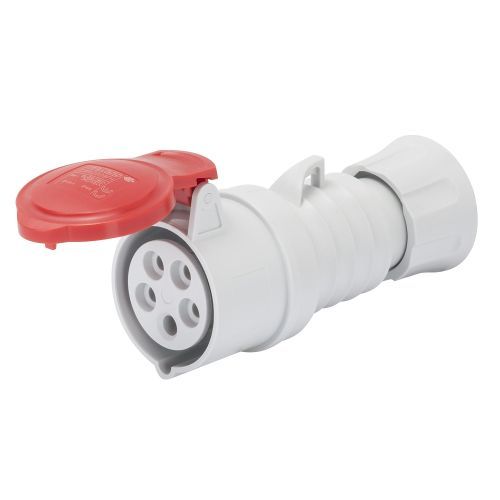

Type: Straight connector

Rated voltage: 380 – 415 V

Frequency: 50/60 Hz

Terminal tightening capacity: 1-2.5mm² flexible cables – 1.5-4mm² rigid cables

Cable clamp tightening capacity: 7.5-13.8 mm

Operating temperature: -25 +55 °C

Type of wiring: With screw

Type of material: Halogen-free in compliance with EN 60754-2

Electrocod: 2210

Glow wire test: 850 °C (active parts) – 650 °C (passive parts)

Total number of operations: > 5000

Permissible overload: 22 A

Breaking capacity at 1.1 Un: 20 A

Insulation resistance: > 10 M?
More Information
GW62008H
Industrial Wiring Accessories
8011564798144
16
Gewiss
