Description

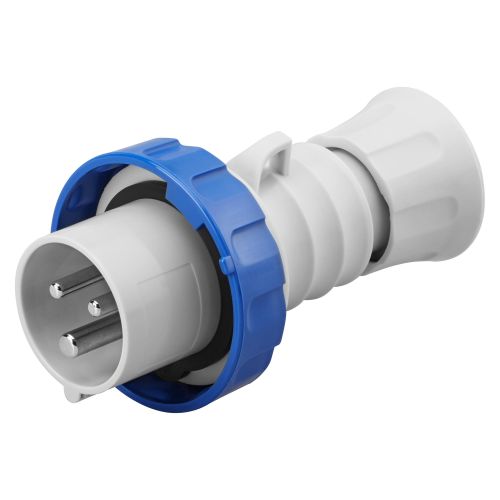

32Amp 240v Commando Plug Blue 3 Pin Trailing / Straight

Product: GW60037H
Colour: Blue
Rated current: 32amp plug
3 Pin Plug
IP degree: IP66/IP67/IP68/IP69
No. of poles: 2P+E
Mechanical resistance: IK09
Reference h: 6
Type: Straight plug
Rated voltage: 200 – 250 V
Frequency: 50/60 Hz
Terminal tightening capacity: 2.5-6mm2 flexible cables – 2.5-10mm2 rigid cables
Cable clamp tightening capacity: 9.2-19.9 mm
Operating temperature: -25 +55 oC
Type of wiring: With screw
Type of material: Halogen-free in compliance with EN 60754-2
Electrocod: 2230
Glow wire test: 850 oC (active parts) – 650 oC (passive parts)
Total number of operations: > 2000
Permissible overload: 42 A
Breaking capacity at 1.1 Un: 40 A
Insulation resistance: > 10 M
Thermo-pressure with ball: 125 oC (active parts) – 80 oC (passive parts)
