Description

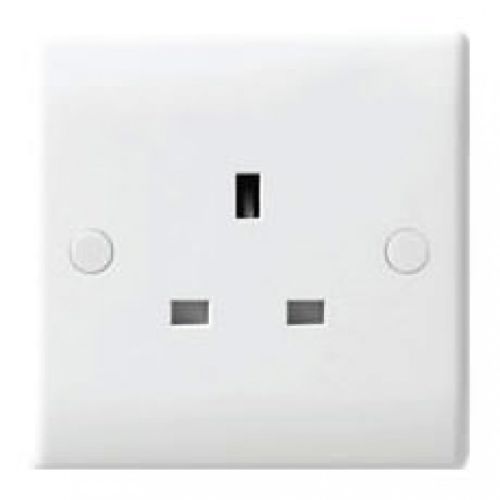

The BG Electrical Moulded 823 is a white single (1 gang) unswitched socket, rated at 13A .

Part of the white moulded round-edge range, the 823 is constructed to a modern standard design to be used with a regular 3 pin UK plug, and so is a great value option for a huge variety of domestic and commercial installations. As an unswitched 13A socket it is particularly suited for use with appliances that may not need switching, such as refrigerators or washing machines.

The 823 is simple to install; supplied with fixing screws, installation instructions and angled colour-coded terminals with captive screws, retrofitting into an existing backbox (minimum depth 25mm) is made easy. To allow for an even safer, high-integrity protective connection, the socket is twin earth fitted to allow a double earth facility.

As per the entire 800 range of switches and sockets, the BG 823 comes with a 30 year warranty for peace of mind. These are manufactured to BS 1363-2 for compliance with national building regulations.

1 gang unswitched socket
13A rating
Twin earth fitted as standard
Minimum mounting box depth: 25mm
Terminal capacity: 3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm²
Sleek Modern Profile
Screw Covers Hide Screw Heads
30 Year Guarantee
Manufactured to BS 1363-2

Additional information
