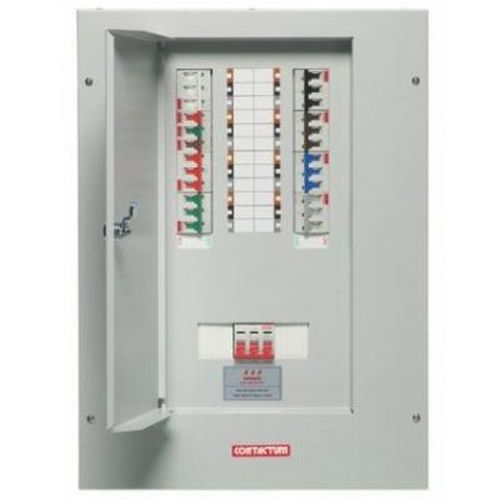

Description

ABC indicator A
Security features locking
Total gross weight (g) includes packing 17200
Total net weight (g) excluding packaging 16744
Individual unit weight (g) 16744
Width mm 414
Height mm 745
Depth mm 130
Size/Dimensions (mm) 414X745X130
Surf area M^2 0.918
Technical
Associated standards BS EN 61439-3
Rated voltage 220-415V
Rated current 125A
Frequency 50-60Hz
Ambient operating temperature -5 to 40°C (24hour average not exceeding 25°C)
Degree of protection IP4X
Nature of supply AC
DIN-rail yes
Extension possible yes
With lock yes
Type of cover steel
Type of door steel
Material housing steel
Plate thickness cabinet 1.2
Plate thickness door/cover 1.2
Mounting method surface
Number of outgoing ways 12
