Description

Colour: Red

Rated current (A): 32

IP degree: IP44/IP54

No. of poles: 3P+E

Reference: 6H

Mechanical resistance: IK09

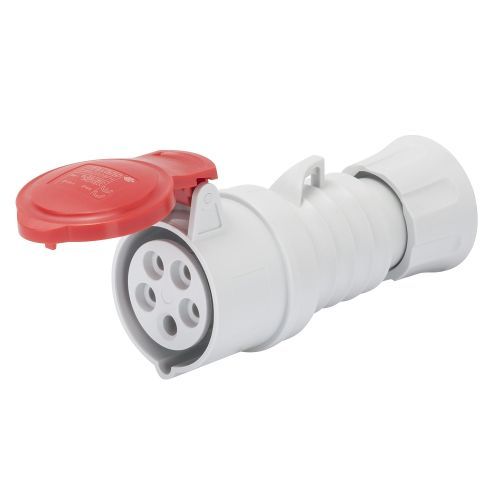

Type: Straight connector

Rated voltage: 380 – 415 V

Frequency: 50/60 Hz

Terminal tightening capacity: 2.5-6mm² flexible cables – 2.5-10mm² rigid cables

Cable clamp tightening capacity: 9.2-19.9 mm

Operating temperature: -25 +55 °C

Type of wiring: With screw

Type of material: Halogen-free in compliance with EN 60754-2

Electrocod: 2210

Glow wire test: 850 °C (active parts) – 850 °C (passive parts)

Total number of operations: > 2000

Permissible overload: 42 A

Breaking capacity at 1.1 Un: 40 A

Insulation resistance: > 10 M?
