Description

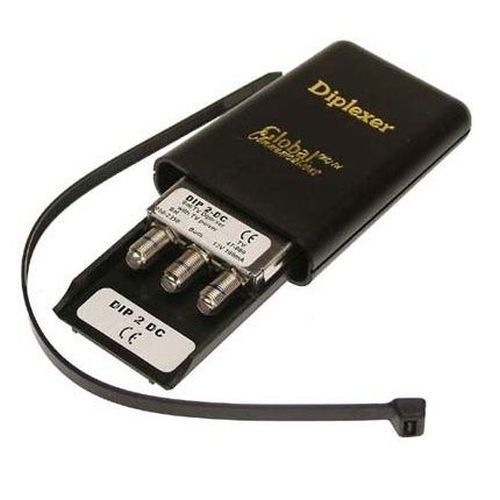

IF/UHF-FM ‘F’ Diplexer

– Allows a Satellite signal to be added to an existing system
– High isolation between Satellite and TV ports
– Low insertion Loss
– Weatherproof case

The DIP2 has high isolation to prevent the satellite LNB noise interferring
with the terrestrial signals or harmonics of the terrestrial signals.

TV Port: 47-860MHz
Insertion Loss: 40dB
Current Passed: n/a
Impedance: 75ohms
Satellite Port: 950 -2150MHz
Insertion Loss: 30dB
Current Passed: 1A max
