Description

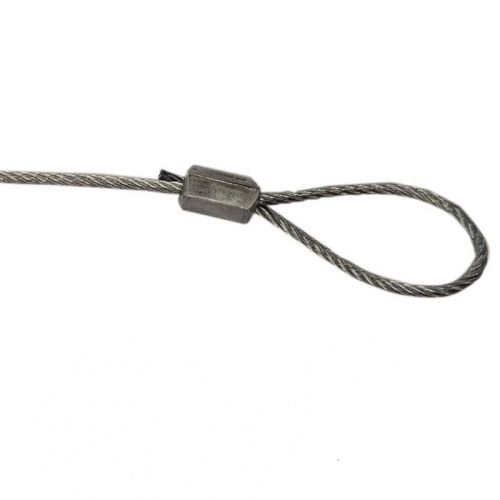

HANGTYTE 3MTR CRIMPED WIRE+FORMED LOOP

Function: Recommended for the suspension of HVAC, electrical and mechanical services.
Applications: Purlins, beams, roof trusses and other accessible building features.
Technical Data:
• SMACNA compliance- all products carry a 5:1 safety factor
• As per UL 1598, CSA C22.2 No.250.0-08
• Tested & Certified by TUV Nord.
Material Specification:
Ferrule: MS-En8D White Zinc (Hexagonal Crimped)
Wire rope: Ms Galvanised IS228, (ASTM-D117)- 2016, IS-6745-2011
Max Load: 280kg
SWL: 56Kg
Safety Factor 5:1
