Description

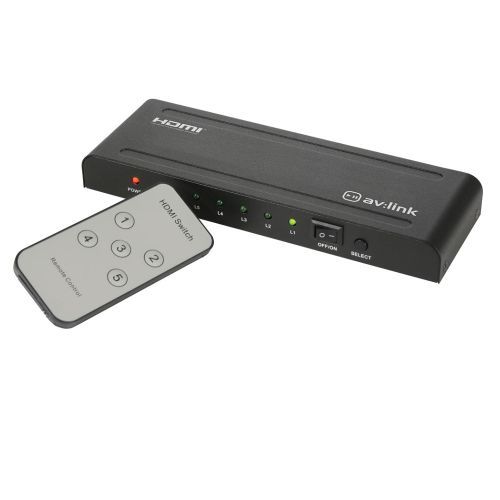

This slimline HDMI switch allows a single display to be connected to up to 5 HDMI sources and selected using the IR remote control or button on the unit. Gold plated connections ensure optimum signal transfer and the LEDs on the front of the unit keep you informed as to which of the inputs is live at any one time.
Sleek design with tough metal chassis
Gold plated HDMI connections for optimum signal transfer
Smart switching function, automatically switches to latest live input
Supports up to Up to 1080p @ 60Hz, 24/30/36 bit deep colour
Supports DTS-HD, Dolby-trueHD, DTS, Dolby-AC3 and DSD audio formats
Front LED’s showing Power and live inputs
Supplied with IR remote control and mains adaptor
HDMI version 1.4a
Video format Up to 1080p @ 60Hz, 24/30/36 bit deep colour
Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
Max. baud rate 2.25Gbps
Max. bandwidth 225MHz
Max. working current 600mA
Operating temperature range -15°C ~ +55°C
Battery : remote CR2025 (supplied)
Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
Dimensions 178 x 58 x 20mm
Weight 220g
