Description

Increase energy-efficiency with Underfloor Heating Insulation Boards.

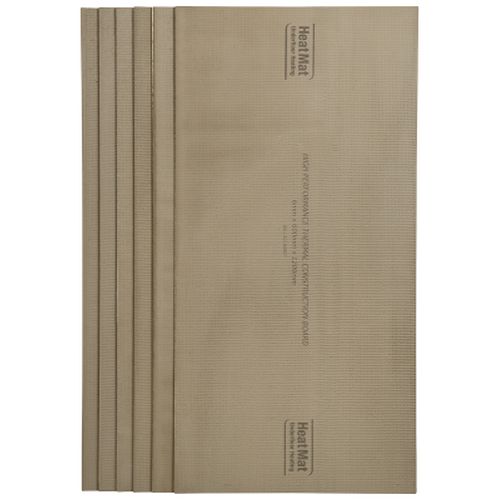

Heatmat’s thermal insulation board is ideal for insulating your floor and boosting the warm up time and efficiency of your underfloor heating system. The product is suitable for use beneath any of our underfloor heating systems and the boards can pay for themselves, through reduced heating bills, in as little as 3 years when used on un-insulated bases.

Underfloor heating insulation boards minimise downward heat loss. When 10mm boards are used beneath a 200W system the floor will normally heat up in as little as 20 minutes and they add very little build height for a great energy saving measure.

• Insulation boards increase the efficiency of all Heat Mat systems
• Available in various thicknesses from 6mm to 70mm to suit your requirements
• 10mm boards offer a good trade-off between insulation value and build height
• Structural insulation board guarantees no floor movement
• Designed to withstand a load of more than 30 tonne/m2
• Completely waterproof, they will not warp, swell or decay
• Ideal for creating a wet room
• Significant soundproofing qualities
• Simple to install
• Boost warm up time
• Completely waterproof
• Reduce your carbon footprint and your fuel bills
• Made in the UK
• Compressive strength: 300kPa
• Thermal conductivity to BS874: 0.027 W/mK
• Thermal conductivity to BS EN 13164 – 5 year test: 0.031 W/mK
• Water absorption: 0.2% by volume
• Density: 36kG/m3
• Flexural strength (transverse): 600kPa
• Flexural strength (Longitudinal): 700kPa
• Temperature range suitability: -50°C – +75°C
• Fire resistance to BS 476 part 6,7 surface spread of flame: Class O
