Description

Short Circuit Breaking Capacity: 6kA
Trip free mechanism
Dimensions: height 83mm x width 18mm x depth 73mm
Cable Capacity: 35mm²
Current Rating: 32A
Trip type: type B
Tripping Characteristics: B Curve
Mounting: DIN Rail
Single pole breaker
Number of poles: single pole
Voltage: 230V | 400V

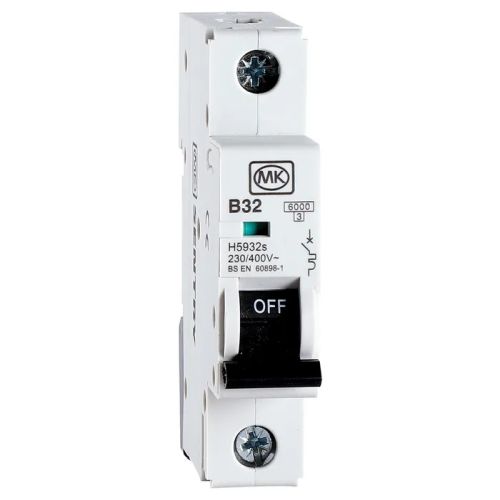

Type: miniature circuit breaker, it detects overcurrents due to both overload and fault currents
All Sentry MCBs have a short circuit breaking capacity of 6000A (M6).
MK H5932S provides an overcurrent rating of 32A and a short circuit breaking capacity of 6kA
