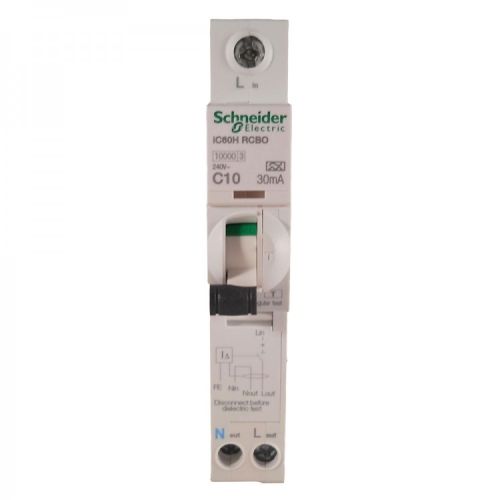

Description

Range Acti 9
Series iC60H
Current Rating 10A
Trip Sensitivity 30mA
Number of Poles 1P+N
Mounting Style DIN Rail Mount
Circuit Breaker Type RCBO• Features earth leakage sensitivity of 30 mA
• A typical application of the device is within a distribution environment
• 1P + N – pole configuration
• Earthing system is TN
• Curve code – C
• The breaking capacity is 10000 A Icn at 240 V AC 50/60 Hz
• ON/OFF locking facilities
• Features an IP degree protection of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water
• The residual current tripping technology is voltage dependant
• DIN rail mounting type, also the option for clip-on mounting mode
• The dimensions of this circuit breaker are H110 mm x W18 mm x D77.5 mm
• Standards – BS EN 61009-1, IEC 61009-1, IEC 61009-2-2 and AS/NZS 61009.1
