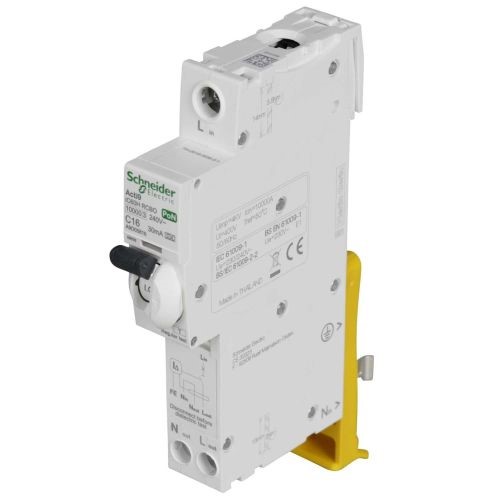

Description

Range Acti 9
Series iC60H
Current Rating 16A
Trip Sensitivity 30mA
Number of Poles 1P+N
Mounting Style DIN Rail Mount
Circuit Breaker Type RCBO
Earth Leakage Protection Type A
Tripping Characteristics Type C
Breaking Capacity at Maximum Voltage Rating 10000 A Icn @ 240 V AC 50/60 HzThe neutral is not interrupted when the device is tripped. Hence why this RCBO can be used on most circuits, except for the ones operating under TT or IT earthing systems

Features earth leakage sensitivity of 30 mA

A typical application of the device is within a distribution environment

1P + N – pole configuration

Earthing system is TN

Curve code – C

The breaking capacity is10000 A Icn at 240 V AC 50/60 Hz

ON/OFF locking facilities

Features an IP degree protection of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water

The residual current tripping technology is voltage dependant

DIN rail mounting type, also the option for clip-on mounting mode

The dimensions of this circuit breaker are H110 mm x W18 mm x D77.5 mm

Standards – BS EN 61009-1, IEC 61009-1, IEC 61009-2-2 and AS/NZS 61009.1
