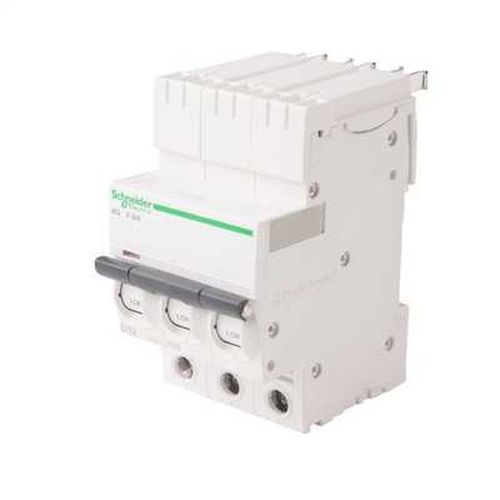

Description

Number of Poles 3P
Current Rating 32A
Tripping Characteristics Type D
Rated AC Voltage 440 V, 12 ? 133 V, 220 ? 240 V, 380 ? 415V
Rated DC Voltage 100 ? 133V
Series iC60H
Range Acti 9
Breaking Capacity at Maximum Voltage Rating 10 kA
Circuit Breaker Type MCB
Mounting Style DIN Rail Mount
Width 54mm
Length 85mm
Depth 78.5mm
Tripping Mechanism Thermal-Magnetic
Terminal Contact Type Screw
Reset Actuator Type Rocker• Downstream circuit is always safe
• Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
• Insulated terminals (IP20)
• Highly durable with robust connections that provide twice the standard tightening torque
• Provide greater continuity of service thanks to VisiTrip
• Double clip for dismounting with comb busbar in place
