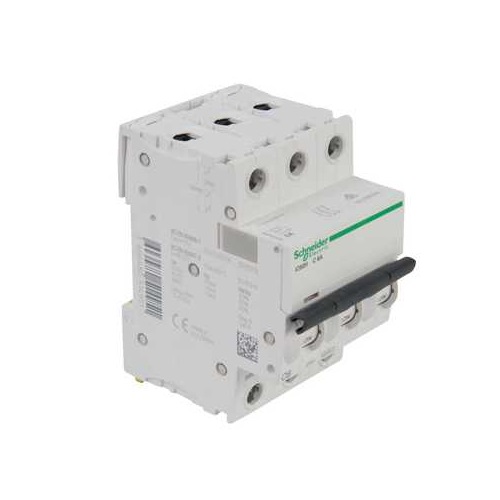

Description

Number of Poles 3P
Current Rating 63A
Tripping Characteristics Type C
Rated AC Voltage 440 V, 12 ? 133 V, 220 ? 240 V, 380 ? 415V
Rated DC Voltage 100 ? 133V
Range Acti 9
Series iC60H
Breaking Capacity at Maximum Voltage Rating 10 kA
Circuit Breaker Type MCB
Mounting Style DIN Rail Mount
Width 54mm
Length 85mm
Depth 78.5mm
Terminal Contact Type Screw
Tripping Mechanism Thermal-Magnetic
Reset Actuator Type Rocker• Downstream circuit is always safe
• Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
• Insulated terminals (IP20)
• Highly durable with robust connections that provide twice the standard tightening torque
• Provide greater continuity of service thanks to VisiTrip
• Double clip for dismounting with comb busbar in place
