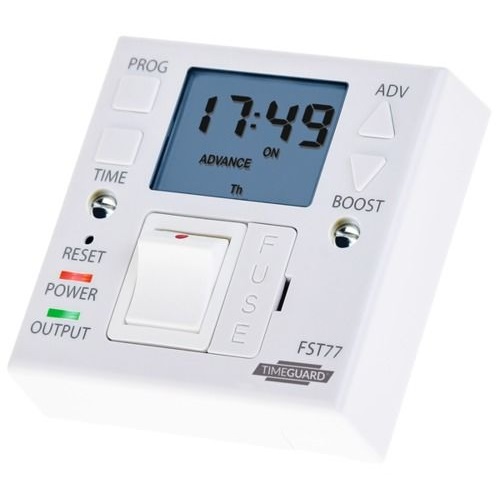

Description

Up to 4 ON and OFF programmes available (5 day plus 2 or 7 day programmes) giving up to 28 ON and OFF programmes per week.
Suitable for use with up to 3kW immersion heaters.
Switches the following lighting loads: 750W incandescent or halogen lighting, 500W fluorescent lighting, 100W compact fluorescent lighting (cfl’s) and 200W LED lighting. Not suitable for discharge lighting.
Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
Permanent OFF and timed outputs available.
Easy view 24 hour digital clock/timer display.
Optional 1 or 2 hour boost facility.
Automatic summer/winter time changeover.
Self-cancelling override.
Shortest switching time 1 minute.
Programme advance and review options. BS1362 fuse replaceable from front.
Double pole switch for ease of control.
Integral memory back up battery retains programmes in event of power failure.
Ideal for replacing single gang connection unit or fixed appliance outlets.
Fits a single gang wall box min. 25mm deep.
