Description

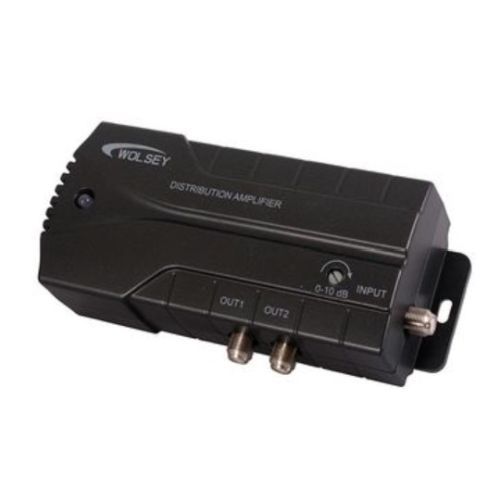

Triax Wolsey LTE 2 Way Distribution Amplifier

LTE Protected Distribution Amplifier

Allows distribution to multiple TV’s around the home
1 Input 2 Output
F-Connectors
Power on LED
Easy to mount fixings
Mains powered
TECHNICAL SPECIFICATIONS

Item ID

EAN Number 5702663340121

Physical

Weight (kg) 0.55 kg

Width (mm) 120 mm

Depth (mm) 58 mm

Height (mm) 180 mm

Colour RAL 7016

Connectors

Number of inputs 1

Number of outputs 2

Input connector ‘F’ Female

Output connector ‘F’ Female

Frequency range

Frequency range 87.5-790 MHz

Gain

Gain 10+/-2 dB

Outputs

Output level IMD 2/IMD 3 @ 60 dB 93.0 dBµV
