Description

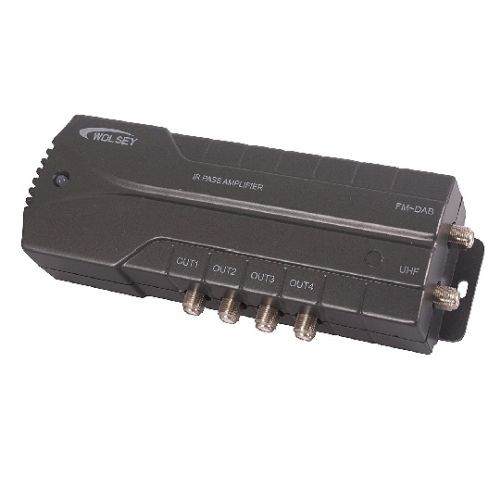

Triax Wolsey LTE 4 Way IR Pass Amplifier

Distributes to multiple TV’s around the home
Allows control of Sky Digital receivers when used with Triax Digital Links
2 Input 4 Output
Short circuit protected on each output
Power on LED
Screened housing
F-Connectors
Easy to mount fixing
Mains powered
TECHNICAL SPECIFICATIONS

Item ID

EAN Number 5702663340220

Physical

Colour RAL 7016

Connectors

Number of inputs 2

Number of outputs 4

Input connector ‘F’ Female

Output connector ‘F’ Female

Frequency range

Frequency range return path 5-30 MHz

Frequency range UHF 470-790 MHz

Frequency range DAB 217-230 MHz

Frequency range FM 87.5-108 MHz

Frequency range 87.5-230 / 470-790 MHz

Gain

Gain 10 +/-2 dB

Outputs

Output level IMD 2/IMD 3 @ 60 dB 93.0 dBµV
